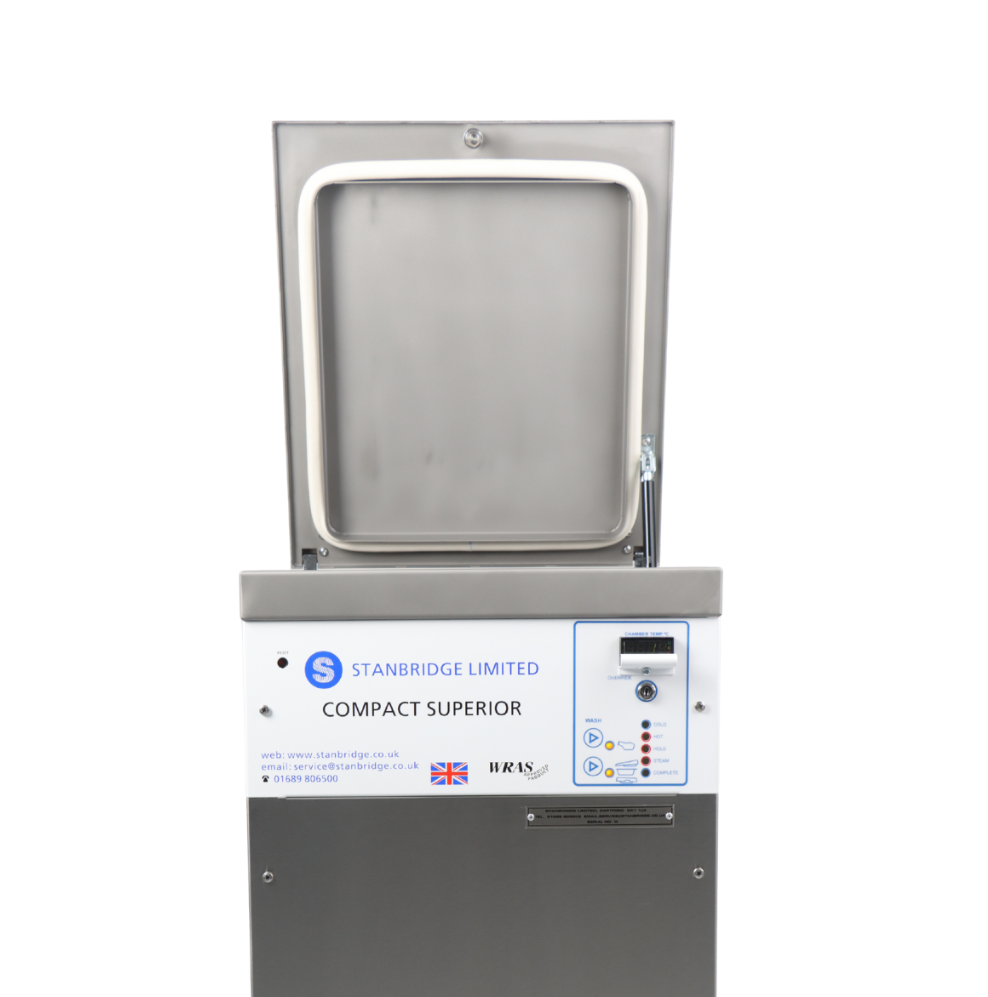

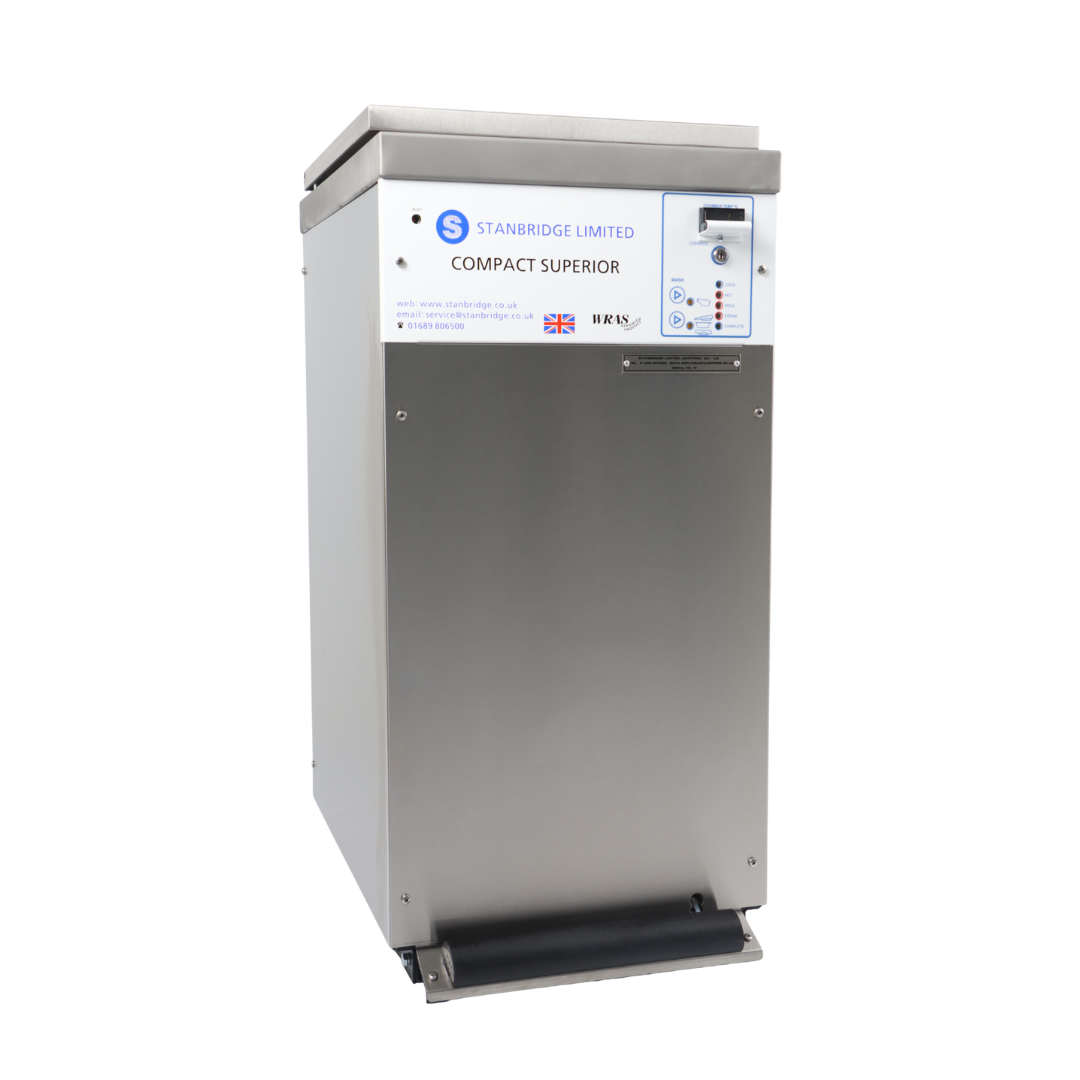

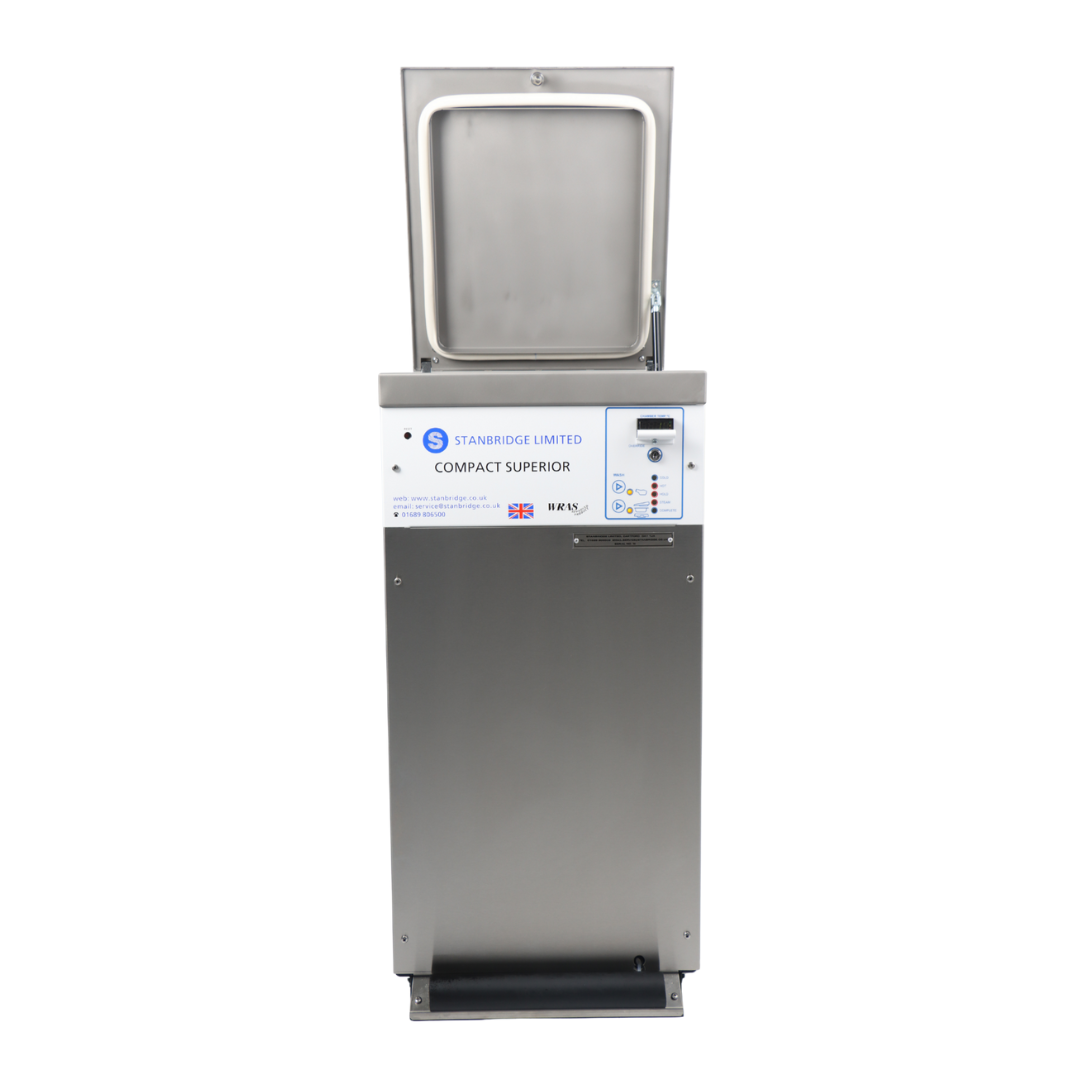

Stanbridge CS2 ST bedpan washer

cs1/cs2 machine

What is a CS2 ST Bedpan Washer / Disinfector?

The Compact Superior 2 (CS2) washes and disinfects reusable utensils, such as bed pans and commode pots, two at a time and is specially designed for care and nursing homes. The CS2 provides an effective infection control barrier which protects residents and staff from the risk of cross-infection and management from potential liabilities.

Stanbridge utensil washer disinfectors are manufactured to meet British Standards, the recommendations of WRAS, and meet EN ISO 15883-1 & ISO 15883-3.



Benefits:

  • Offers both super and normal wash cycles for flexibility.
  • Thermally disinfects with steam to kill pathogens & microorganisms.
  • Included Deoscale water treatment system to control limescale build-up.



Considerations:

Commonly chosen by care and nursing homes.

Our CS2 machines are also available to finance, lease and rent to help spread the cost of improving your sluice room.



What prerequisites are required for the installation of a bedpan washer disinfector?

The following requisites are required for installation:

  • A 16amp Neon safety isolating switch needs to be accessible.
  • A cold water feed supply within 1 metre of the machine location.
  • All water services need to be within 1 metre of the machine location.
  • Access to a 4-inch soil pipe within 1 Metre of the machine location.



Product Specifications:

Height (mm): 915
Width (mm): 435
Depth (mm): 6655
Water Feed: x1
Supply: Cold
Connection: 3/4” BSP male parallel
Overflow: 1x19mm (3/4”) bore. End must be visible. (UK requirement)
Waste: 82mm (3”) ‘P’ or ‘S’ trap
Electrical: 230V 50Hz 16A single phase
Washing Cycles: 1) Bottle wash – Wash – Disinfection at 80°C+ for 70 seconds – Rinse to cool utensils.

2) Pan wash – Pre flush – Wash – Disinfection at 80°C+ for 70 seconds – Rinse to cool utensils.



Contact our team of experts today to request a quote!
